Pacific Peak Mechanical installs Mitsubishi Electric ductless and ducted systems and American Standard heat pumps, AC and gas furnaces in Silver, Gold and Platinum tiers, plus the Ameristar value line. Installed prices start at $4,800 for a ductless mini-split.
Three tiers, matching the Good, Better and Best heat pump tiers in our estimator: the multi-speed Silver 16 side-discharge on R-454B, in a shallow cabinet that fits tight side yards; the multi-speed Gold 17; and the variable-speed Platinum 20 AccuComfort flagship.

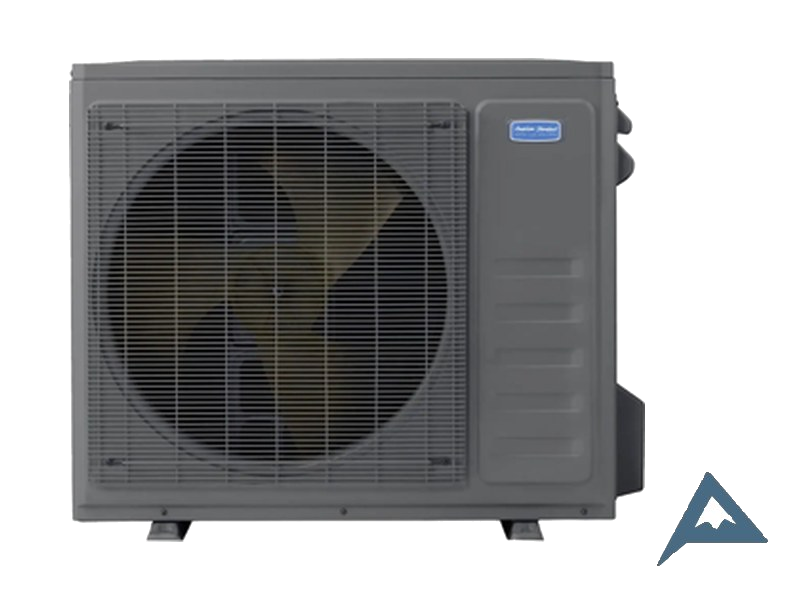

Multi-speed, low-profile side-discharge heat pump on R-454B refrigerant. Its shallow cabinet fits tight side yards and zero-lot-line homes, and can sit under a deck or window. It is our Good tier at 2–4 tons; at 5 tons the Good tier is the 14.3 SEER2 Silver 14.
Multi-speed compressor that adjusts its speed to the load, for more consistent comfort than single-stage. Clark PUD's ducted heat pump rebates, up to $1,250 for replacing an electric forced-air furnace, are paid only to Contractor Network installers, which we are not.
Flagship AccuComfort variable-speed heat pump. American Standard says it holds temperature within ½°F of the setpoint.

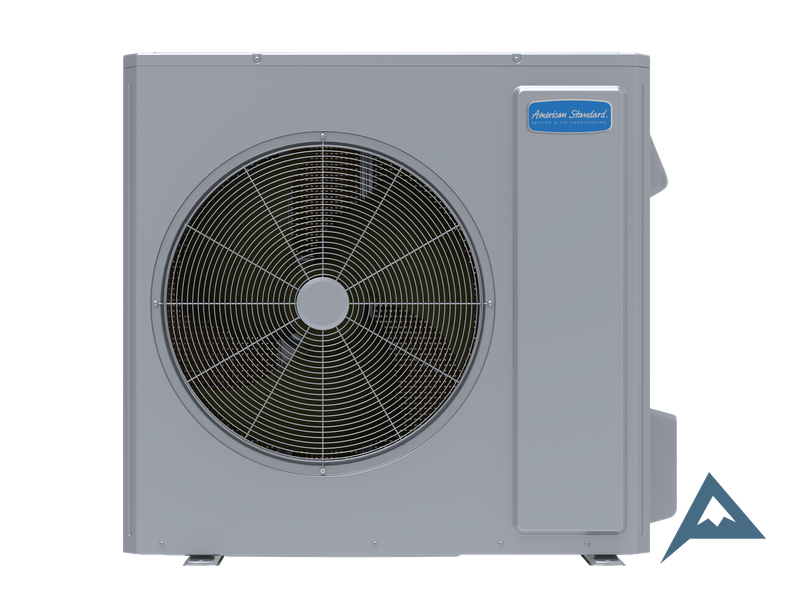

For a tight side yard where you also want more winter heat, we install the Silver 16 Cold Climate, American Standard's multi-speed, low-profile cold-climate heat pump. It sits beside the house like the standard Silver 16 side-discharge, with higher efficiency ratings.
Multi-speed, low-profile side-discharge heat pump on R-454B refrigerant, in two sizes: 5HCL5036B for 2 to 3 tons and 5HCL5060B for 4 to 5 tons. American Standard says its low-profile cold-climate heat pumps provide 100% of a home's heat down to 5°F and 70% of its heating needs down to -13°F. It pairs with its matched American Standard indoor unit.
Cooling-only, for when your existing gas furnace is still serviceable. Single-stage, multi-speed and variable-speed, on R-454B refrigerant.
Reliable single-stage AC. Meets federal minimum. Best value when your furnace is under 10 years old and you just need cooling added or replaced.

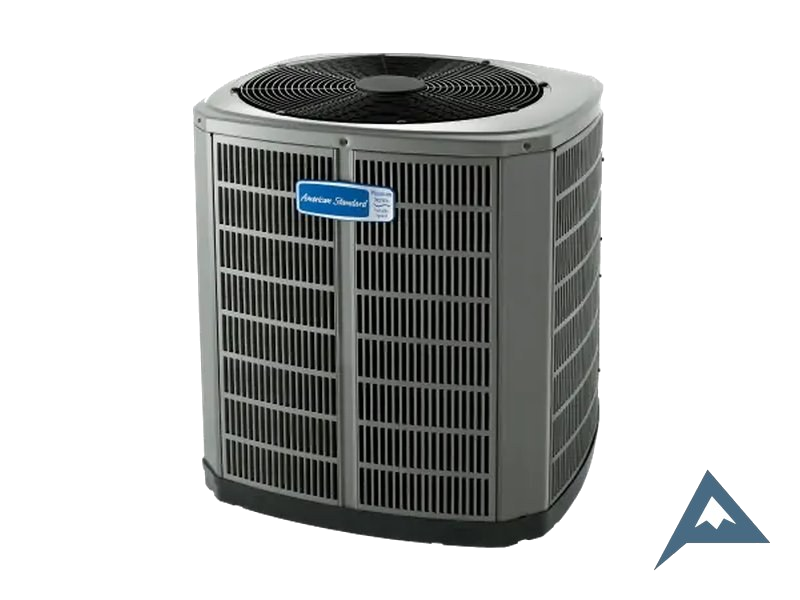

Multi-speed compressor with inverter technology that adjusts its speed to the load, for more consistent cooling and better humidity control.

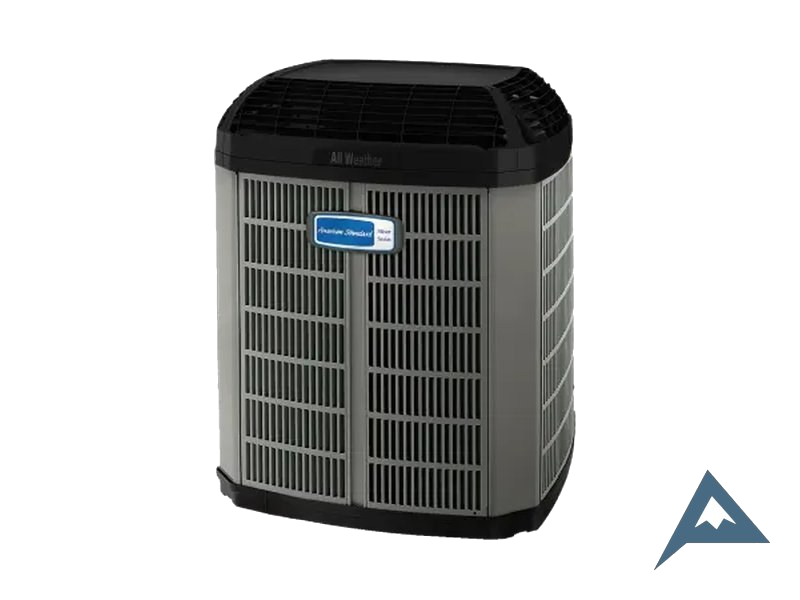

AccuComfort variable-speed compressor, the top of American Standard's air conditioner line. We price it as a system with the 97.3% AFUE Platinum 95 furnace.

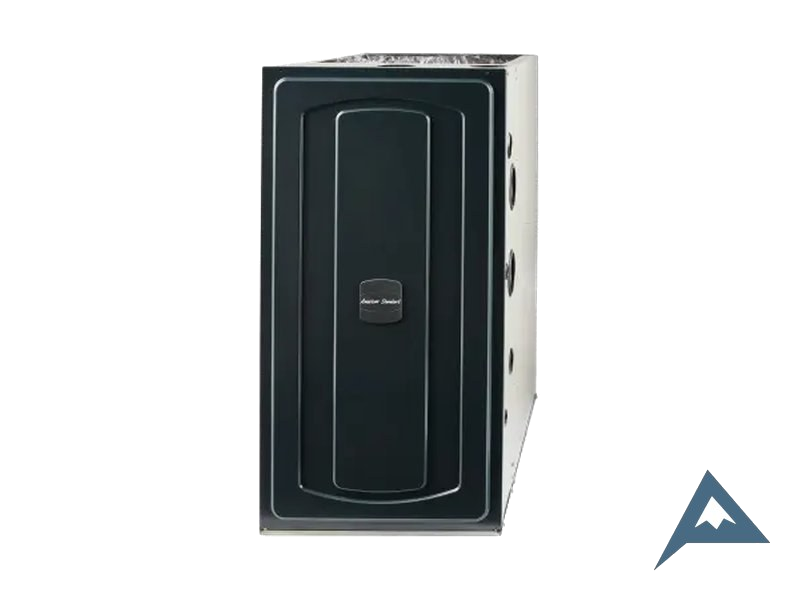

Silver 80 is single-stage 80% AFUE, the code-minimum pick. Gold S9V2 is our most-installed furnace at 96% AFUE with variable-speed Vortica II blower. Platinum 95 runs a fully modulating gas valve between 40–100% capacity for precise heat.
Budget-tier single-stage gas furnace. 80% AFUE. Good choice for mild-climate installs or rental properties. Vents through a standard metal flue.

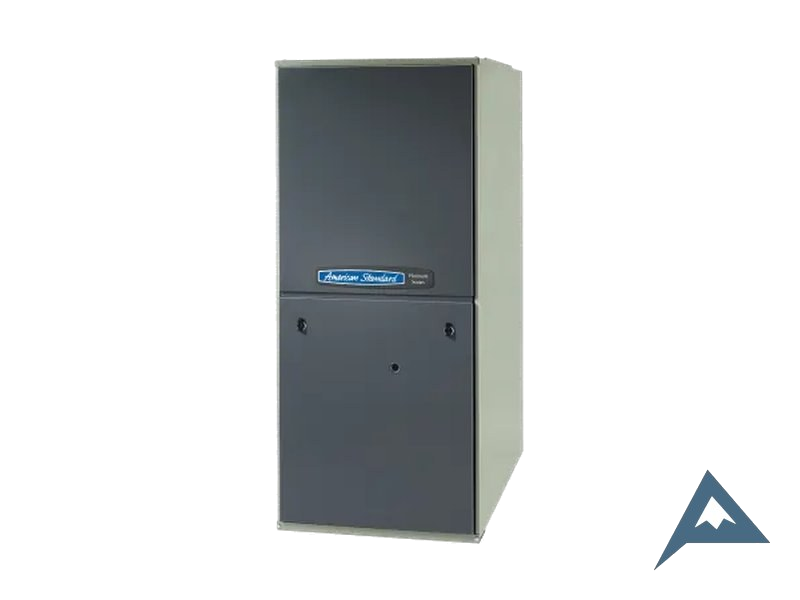

Two-stage 96% AFUE condensing furnace with Vortica II variable-speed blower. Direct-vent PVC flue. Our most-installed furnace. Qualifies for Energy Trust's $800 gas furnace rebate for NW Natural customers in an owner-occupied single-family home.

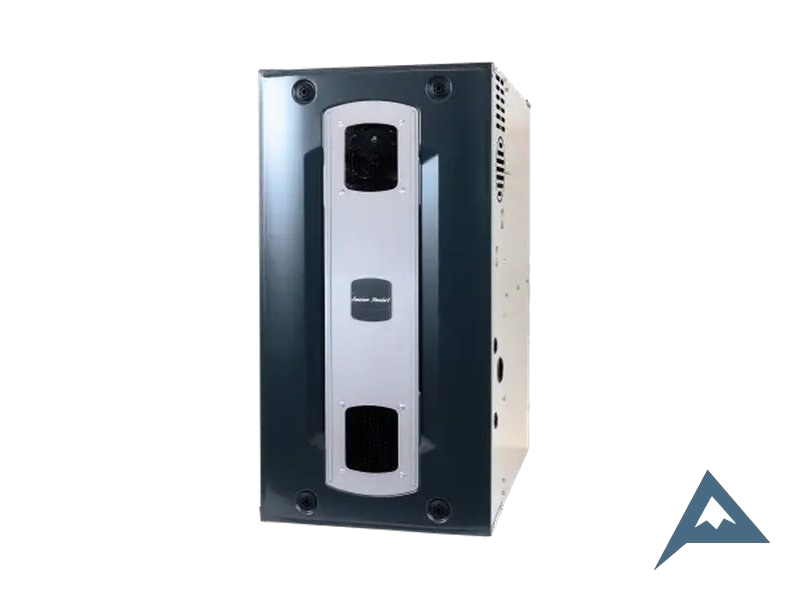

Fully modulating gas valve runs between 40–100% capacity to match demand. AccuLink communicating.
As a Mitsubishi Diamond Contractor, we install the full M-Series lineup. The FX, like our Smart Multi and SVZ ducted installs, qualifies for Mitsubishi's 12-year parts and compressor warranty when we register it within 90 days in an owner-occupied home; the WX and HX top out at 10 years. WX is entry tier, HX is mid-tier, FX is the flagship H2i sumo Hyper-Heat, some of the most efficient heat pumps made.
Entry-tier Mitsubishi single-zone wall-mount. 10-year parts and compressor warranty when registered. Good for additions, garages, and single rooms.
Mid-tier Mitsubishi single-zone, ENERGY STAR cold-climate certified. Keeps heating down to -5°F and still delivers about 70% of its rated heat at 5°F. Qualifies for Clark PUD's $900 ductless rebate when it replaces an electric furnace or electric zonal heat, and carries a 10-year parts and compressor warranty when registered.
Flagship Mitsubishi inverter. One of the most efficient heat pumps on the market, at up to 35 SEER2. 100% heating capacity at -10°F, and it keeps heating down to -22°F. R-454B refrigerant. Our top ductless pick for Pacific Northwest climates.

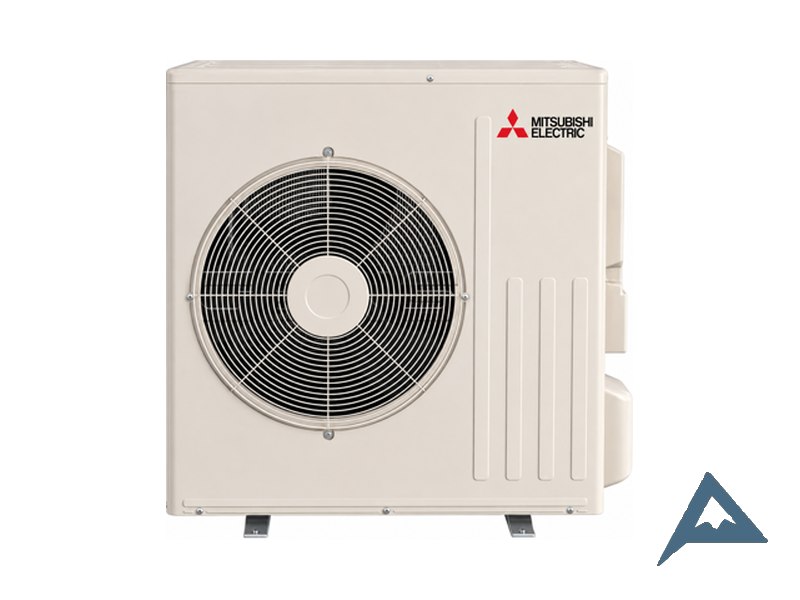

One Mitsubishi Smart Multi outdoor unit drives 2–8 indoor heads in any combination of wall, ceiling, and floor-mount units, and it also accepts CITY MULTI indoor units. Smart Multi (MXZ-SM) carries Mitsubishi's 12-year Diamond Contractor warranty when we register it within 90 days in an owner-occupied home.
3-ton multi-zone outdoor unit. Our most-installed multi-zone. Drives up to 5 indoor heads in mixed configurations. ENERGY STAR certified combinations.

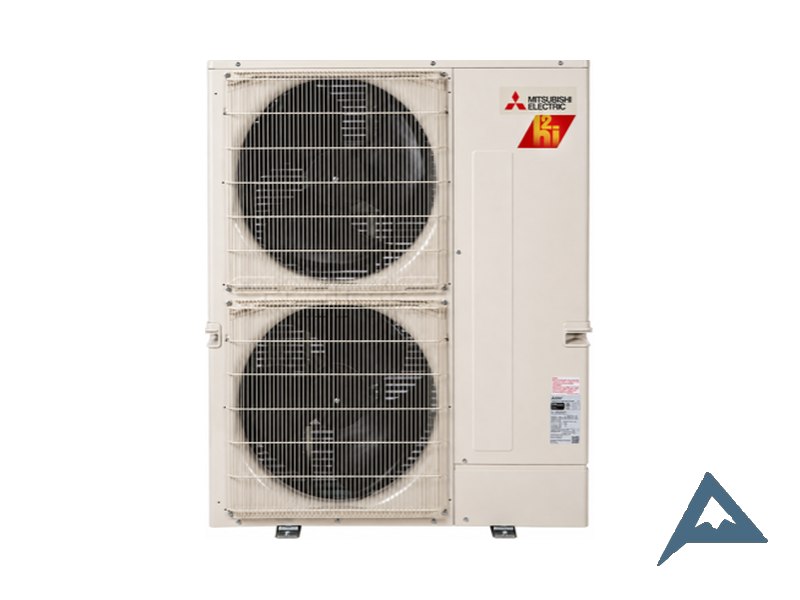

4-ton Hyper-Heat multi-zone. Handles larger homes and mixed residential + light commercial applications. Full capacity down to 5°F. Best for whole-home ductless conversions.
5-ton multi-zone for large homes, light commercial, or multi-unit residential. Handles up to 8 indoor units in any mix of wall, ceiling cassette, floor, or concealed duct configurations.

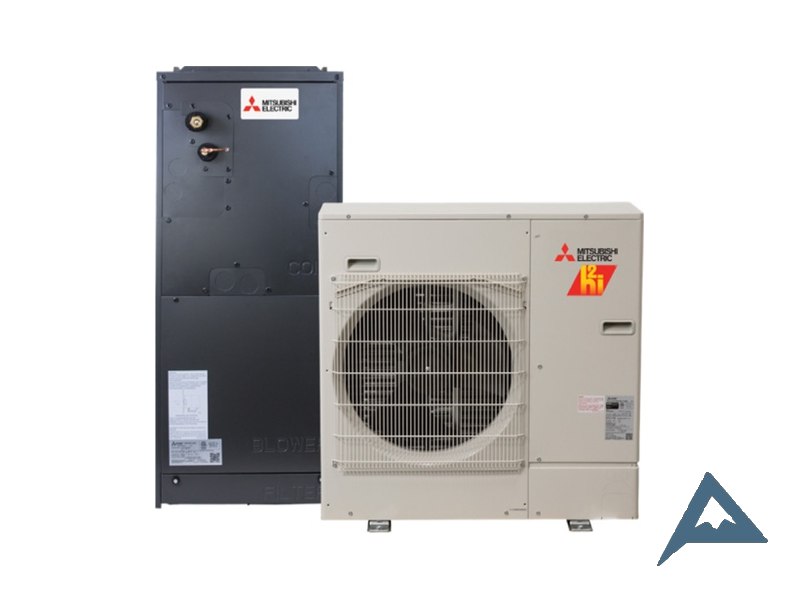

For homes with existing ductwork that want Mitsubishi reliability and inverter performance. The SVZ Multi-position Air Handler pairs 1:1 with the SUZ Universal Outdoor Unit, delivering inverter-driven comfort through conventional ducts, and the Hyper-Heat SUZ keeps heating down to -13°F.
2-ton Hyper-Heat ducted inverter system. Ideal for homes under 1,100 sq ft with existing ductwork. Multi-position air handler installs horizontal or vertical.
3-ton sweet-spot configuration. Inverter-driven ducted system for 1,500–2,500 sq ft Vancouver homes. Kumo Cloud WiFi compatible. Our most-recommended ducted Mitsubishi spec.
4-ton ducted Hyper-Heat for larger homes (2,500–3,500 sq ft). Keeps heating down to -13°F. Ideal for cold-climate ducted retrofits.

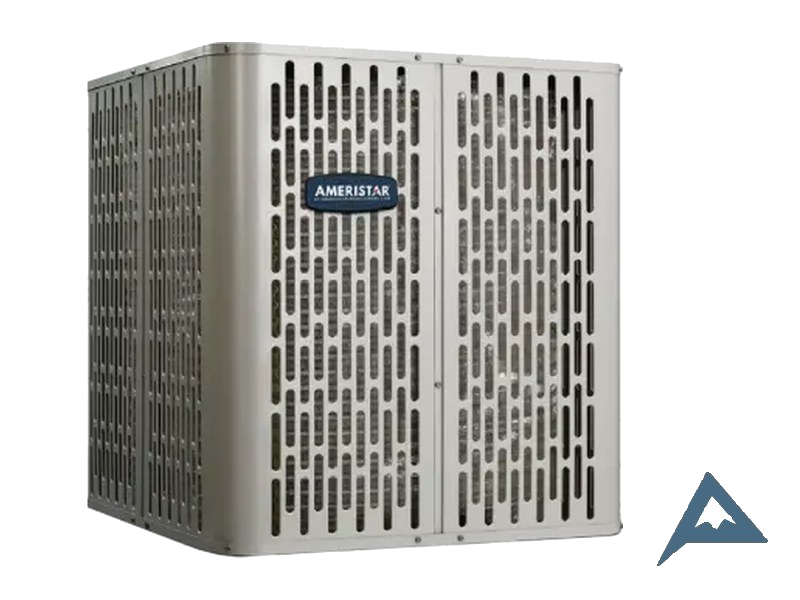

Ameristar is a value brand from Trane Technologies, American Standard's parent company: simpler features at a lower price point. Best fit for rentals, investment properties, mild-climate installs, and homeowners where upfront cost is the deciding factor.
Single-stage heat pump on R-454B refrigerant. Straightforward, reliable, easy to service. 2–5 ton sizes. 10-year parts warranty requires registration within 60 days.
Single-stage AC on R-454B refrigerant, trimmed to essentials. The Good tier in our AC estimator, and the best value when paired with an existing serviceable furnace.
Ameristar trades away features (multi-speed and variable-speed compressors, higher SEER2) for a lower upfront cost. For a home you plan to stay in 10+ years, ask us to price the American Standard Gold 17 next to it.
Every job starts with a 30-minute in-home measurement. We walk your property, run the load calc, and match the right tier to your climate, ductwork, and budget.
